Thought Technology Sensors & Accessories

MyoScan Pro EMG Sensor

A pre-amplified surface electromyography sensor used with the ProComp Infiniti channels C - H for RMS sEMG. Features a range switch in the sensor head to change filter settings between 0 - 400 µV Narrow filter, 0 - 400 µV Wide filter, 0 - 1600 µV Wide filter. Compatible with Triode electrodes or extender cables for wider placement of electrodes.

Size (Approx.): 37mm x 37mm x 15mm (1.45" x 1.45" x 0.60")
Weight: 25g (1 oz)
Input Impedance: 1,000,000Mohms in parallel with 10 pF
Input Range: 0 - 400µVRMS, 0 - 1600µVRMS
Sensitivity: <0.1µVRMS
Bandwidth: 20Hz - 500Hz

MyoScan EMG Sensor

A pre-amplified surface electromyography sensor used with the ProComp Infiniti channels A - B for RAW sEMG. and FlexComp Infiniti channels. Compatible with Triode electrodes or extender cables for wider placement of electrodes. Range of 0 - 2000 µV.

Size (Approx.): 37mm x 37mm x 12mm (1.45" x 1.45" x 0.45")
Weight: 15g (0.5 oz)
Input Impedance: >1012ohms in parallel with 10pF
Input Range: 0 - 2000µVRMS
Sensitivity: <0.1µVRMS
CMRR: >130dB
Channel Bandwidth: 10Hz - 1kHz
Signal Output Range: 0 - 1.0V RMS
Input / Output Gain: 500
Supply Voltage: 7.26V (± 0.02V)
Current Consumption: 0.7mA (± 0.25mA)

EKG Sensor

A pre-amplified electrocardiograph sensor, for directly measuring heart electrical activity. Connects via extender cables for a single channel hook up. Bandwidth of 0.05 Hz - 1 KHz.

Size (Approx.): 37mm x 37mm x 12mm (1.45" x 1.45" x 0.45")
Weight (approx.): 25g (1oz)
Input Impedance: 1,000,000Mohms in parallel with 10pF
Signal Input Range: 0 - 12mVRMS
Sensitivity: <1µVRMS
CMRR: >130dB
Channel Bandwidth: 0.05Hz - 1kHz
Signal Output Range: 0 - 600mVRMS
Input/Output Gain: 50
Supply Voltage: 7.26V (± 0.05V)
Current Consumption: <1.5mA

EEG-Z Sensor

Size (Approx.): 37mm x 37mm x 12mm (1.45" x 1.45" x 0.45")
Weight (approx.): 25g (1oz)
Input Impedance: 10Gohms in parallel with 10pF
Signal Input Range: 0 - 200µV
Sensitivity: <0.1µVRMS
CMRR: >130dB
Channel Bandwidth: 2Hz - 1kHz

EEG Flex/Pro Sensor

A pre-amplified electroencephalograph sensor, without the built in impedance sensing of the EEG-Z.

Size (Approx.): 37mm x 37mm x 12mm(1.45" x 1.45" x 0.45")
Weight: 25g (1 oz)
Input Impedance: 1,000,000Mohms in parallel with 10pF
Input Range: 0 - 200µVRMS
Sensitivity: <0.1µVRMS
Bandwidth: 2Hz - 1kHz
CMRR: >130dB

Temperature Sensor

A skin temperature sensor, measuring between 10°C - 45°C ( 50°F - 115°F ).

Length (Approx.): 152cm (60")
Weight: 10g (0.33oz)
Temperature Range: 10°C - 45°C (50°F - 115°F)
Accuracy: ±1.0°C (±1.8°F) 20°C - 40°C (68°F - 104°F)

Blood Volume Pulse (BVP) Sensor

A pulse detection sensor housed in a small finger worn package, to measure pulse rate of client.

Length (Approx.): 20mm x 34mm x 10mm (0.72" x 1.33" x 0.41")
Weight: 20g (0.66 oz)
Input Range: Unit less quantity displayed as 0% - 100%

Respiration Sensor

An easy fitting high durability latex rubber band fixed with velcro respiration belt for monitoring respiration rate from a client. Can be worn either thoracically or abdominally, over clothing.

Size (Approx.): 132cm (52" Long)
Weight: 30g (1.0 oz)
Range: 30% - 65%

Voltage Isolator

Size (Approx.): 95mm x 57mm x 32mm (3.75" x 2.25" x 1.25")
Weight: 55g (2 oz)
Input Impedance: 1Mohm
Input Range: 0 - 200mV, 0 - 2V, 1.952V - 3.648V
Bandwidth: 0Hz - 40Hz

Skin Conductance Flex/Pro Sensor

A sensor to measure the conductance across the skin, normally connected to the fingers or toes. Supplied with two finger bands.

Size without electrode leads (approx.): 3.5 cm (1.4")
Size with electrode leads (approx.): 15 cm (6.0")
Cable Length (approx.): 127 cm (50")
Weight (approx.): 25 g (1 oz)
Signal Input Range: 0 - 30.0 µS

Goniometer Adapter

Size (approx.): 370mm x 370mm x 100mm (1.45" x 1.45" x 0.44")
Weight (approx.): 15g (0.5 oz)
Input Impedance: >1Mohm
Signal Input Range: -180° - +180° (±5 degrees of movement)
Signal Output Range: 2.200 - 3.400V
Supply Voltage: 7.26 VDC
Current Consumption: <4mA @ 7.26 VDC

Bend Sensor

Bend sensor is small enough to be placed on fingers and wrists to monitor joint motion. 180 degrees of flexion. Use sensors back to back to get a 360 degree range.

Force Sensor Adapter

Sensor Resistive Range: 1Kohm - 1.4Mohm (native Infiniti modes)
Output Voltage Transfer Function: V out = [301Kohm/(Rfs +575Kohm)] * Vs, where Rfs is the resistance of force sensor in Kohm
Supply Voltage: (Vs) = 7.26V
Current Consumption: < 1mA @ 7.26V nominal
Resistance to Voltage Accuracy: ±1%
Length: ~152cm (60")
Weight: ~10g

EMG Extender Cables

T8720M - Extend the placement possibilities of the MyoScan and MyoScan Pro, sensors with the shielded, low noise extender cables.

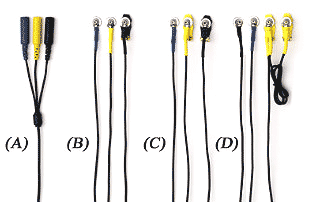

EEG Extender Cables

(A) DIN cable extender cable, connects to client via replaceable electrodes. Enabling monopolar or bipolar connections it is the most versatile option. Electrodes purchased separately.
(B) Bipolar extender cable, with permanent tin cup electrodes with one ear clip.
(C) Monopolar extender cable, with permanent tin cup electrodes with two ear clips.
(D) Linked ear extender cable, with permanent tin cup electrodes and linked ear connections.

Gold-plated EEG Electrodes

TT-EEG electrodes have been designed for comfort, ease of use and durability. TT-EEG includes gold-plated silver cup electrodes and gold-plated earclips with contacts on both sides. TT-EEG earclips can be connected together using a jumper cable for linked ear setups.

TT-EEG earclips are the most comfortable and easy to use earclips on the market, assuring excellent connection through their large gold-plated surfaces. TT-EEG earclips and electrodes are available in 22" and 40" lead lengths with industry-standard protected pin DIN connectors at the ends - easy to connect to most equipment.

Electrodes

(A) Triode, electrode with standard 2cm spacing of silver silver chloride electrodes, backed with nickel plated brass snaps to prevent corrosion when connected to pre-amplifiers for extended periods.
(B) UniGel electrodes, pre gelled single electrodes, or sensitive placements on dry skin.
(C) Single strip electrodes, versatile electrodes can be used as strip or separated for wider placements.
