CHATILLON DMG Series
Mechanical Job Task Analyzer

This hand-held dynamometer lets you objectively measure manual muscle strength and functional task requirements for almost any application. Offers full portability and ease of use for a fraction of the cost of expensive computer controlled systems.

Available in 200 lbf and 500 lbf capacities, these rugged mechanical instruments accurately measure (±0.5% FS) instantaneous push or pull forces generated by the test subject. A calibrated dial shows instantaneous force. An easy-to-use peak force switch freezes the pointer at the maximum force for simple identification and analysis. Gauges come complete with handle assembly and carrying case. Use with optional (FCEK) or (MSCK). All DMG Series gauges come standard with a Certificate of Calibration with data verification to NIST.

Notice: These digital gauges are general purpose force measurement instruments. They are not suitable for applications regulated by the United States Food & Drug Administration or Health Canada.

Applications

Physical Medicine

Accurately measure and document musculoskeletal strength to determine patient condition and serially track progress. Evaluate individual muscle groups in flexion/extension, internal/external rotation, plantar flexion, dorsi flexion and abduction/adduction.

Occupational Medicine

Conduct job task analysis, ergonomic analysis, and ADA compliance evaluations. Measure actual push, pull, and lift forces of a particular job task, then quantitatively evaluate an individual's ability to perform each task. Ensure an employee's ability to work following an injury.

Sports Medicine

Objectively quantify an athlete's musculoskeletal force output. Evaluate and document the effectiveness of a prescribed training program. Serially track each patient's progress.

Features

Easy to Use, Durable Construction
Tensile or Compression Testing
Intrinsically Safe
Two Capacities 200 lbf & 500 lbf
Push or Pull Operations
Tare Ring
Peak Capture
Universal Mounting Plate
NIST Calibration with Data

Standard Gauge Measurement Functions

Tensile (Pull) Load (one direction dedicated to pull)
Compression (Push) Load (one direction dedicated to push)
Peak Tension or Compression Load (switch activated)

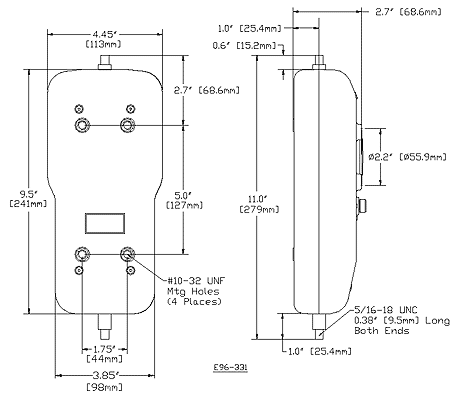

Specifications

Accuracy: ±0.5% of Full Scale
Overload Capacity: 110% of Rated Capacity
Maximum Overload: 150% of Rated Capacity
Tare Capacity: 10% of Rated Capacity
Dial Resolution: 0.5% of Full Scale
Deflection: 10mm (.394 inches) at Full Scale
Operating Temperature: 40°F to 110°F (5°C to 45°C)
Instrument Weight: 4.7 lbs (2.12 kg)
Shipping Weight with case: 8.4 lbs (3.80 kg)
Warranty: 2 Years

Parts and Accessories

Model	Description	Accuracy	Certification	Capacity	Thread
DMG-200	DMG Series Dynamometer with Decimal Dial	±0.5% FS	NIST Data	200 x 1.0 lbf	5/16-18F
DMG-500	DMG Series Dynamometer with Decimal Dial	±0.5% FS	NIST Data	500 x 2.5 lbf	5/16-18F
K-DMG-200	DMG Series Medical Kit	±0.5% FS	NIST Data	200 x 1.0 lbf	5/16-18F
K-DMG-500	DMG Series Medical Kit	±0.5% FS	NIST Data	500 x 2.5 lbf	5/16-18F

Model	Description	DG-XXX	DMG-XXX	K-DMG-XXX
SPK-FMG-011B	Flat Adapter, 5/16-18F (500 lbf)	Standard	Optional	Optional
SPK-FMG-012C	Hook, Stationary, 5/16-18F (500 lbf)	Standard	Optional	Optional
NC002500	Hook, with Latch, 5/16-18F (500 lbf)	Optional	Standard	Standard
SPK-FMG-008B	Chisel Adapter, 5/16-18F (500 lbf)	Standard	Optional	Optional
SPK-FMG-009B	Point Adapter, 5/16-18F (500 lbf)	Standard	Optional	Optional
SPK-FMG-010B	Notch Adapter, 5/16-18F (500 lbf)	Standard	Optional	Optional
NC000725	V-Notch Fixture, 1-inch, 5/16-18F (500 lbf)	Optional	Optional	Standard
NC000721	V-Notch Fixture, 5/8-inch, 5/16-18F (500 lbf)	Optional	Optional	Standard
SPK-FMG-013A	Extension Rod, #10-32F - #10-32M (100 lbf)	Standard	Optional	Standard
SPK-FMG-142	Curved Compression Fixture, with Rubber Pad, 5/16-18F	Optional	Optional	Standard
SPK-FMG-143	Compression Plate, Circular, with Rubber Pad, 5/16-18F	Optional	Optional	Standard
SPK-FMG-144	Palm Fixture, 5/16-18F	Optional	Optional	Standard
SPK-FMG-145	Compression Plate, Large Rectangular, with Rubber Pad, 5/16-18F	Optional	Standard	Standard
SPK-FMG-146	Compression Plate, Small Rectangular, with Rubber Pad, 5/16-18F	Optional	Optional	Standard
NC002844	Grasping Cable	Optional	Optional	Standard
SPK-DG-HANDLE	Handle Assembly	Optional	Standard	Standard
NC002728	DG Carrying Case (Small)	Standard	NA
NC002871	DMG Carrying Case (Large)	Optional	Standard
NC003115	K-DMG Carrying Case (Large)	Optional	Optional	Standard
SPK-FMG-147	Travel Carrying Case	NA	Standard
NC002845	Soft Case Fanny Pack	Optional	Optional
