Glove Sensor System

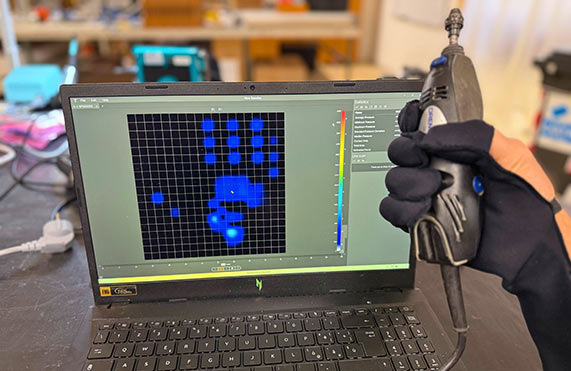

NexGen’s Glove Sensor System is an easy to use solution for product designers, ergonomists, safety engineers and health professionals interested in determining pressure or forces when grasping various objects.

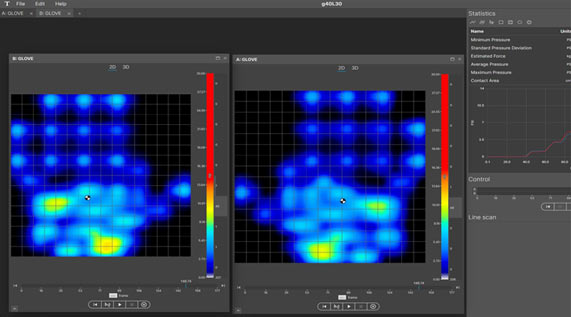

The wireless Bluetooth version data is collected via an Android APP and then data is transferred after collection to TS10 software. The USB version provides real-time data capture and display with TS10.

Customers can select the calibration range such as 5-10 psi or 0-30 psi etc. Gloves can also be ordered with higher ranges of 60 and 100 psi.

Benefits

Teflon coated for excellent rub resistance, greater durability and sensitivity than other electronic sensors, and they are completely immune to electronic interference and totally waterproof.

Specifications

Technology: Piezoresistive fabric
Pressure Range: 0 – 30, 60 or 100 psi (0 - 2.1, 4.2 or 7 kg/cm²)
Sensing Points Per Glove: 80
Transmission Type: Bluetooth or USB
Scan Speed: Up to 50 Hz
Glove Sizes: S, M, L, XL
Sensor Size: 0.313” x 0.313” (7.95 mm x 7.95 mm)
Sensor Thickness: 40 mils (1 mm)
Accuracy: ± 10%
Battery Type: 3.7V Lithium ion rechargeable
Repeatability: ± 4%
Repeatability Error: ± 3%
Non-linearity: ± 0.2%
Battery Life: Approx. 8 hours
