Mark-10 Cap Torque Gauges Series TT03C
Series TT03C digital cap torque gauges are quick and economical solutions for basic handheld cap torque testing. These portable instruments eliminate the need to secure closures in a fixture or more elaborate testing system. A dedicated remote torque sensor with Jacobs chuck is supplied with a universal grip for caps from 0.65 - 1.55 in (16.5 - 39.4 mm) diameter.
Mark-10 Series TT03C gauges consist of a Series TT03 torque gauge and G1053 cap grip.
The gauges include MESUR™ Lite data acquisition software. MESUR Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.
Use MESUR™gauge Analysis Software to tabulate, graph, and analyze test data.
Features
- Ergonomic torque sensor with Jacobs chuck
- Peak torque values saved and displayed
- High-speed 2,000 Hz sampling rate
- USB data output
- Programmable set points with pass/fail indicators
- Live load bar graphs with set point markers
- Peak memory for clockwise and counter clockwise readings
- Set points always displayed
- Configurable audio alarms and key tones
- MESUR™ Lite data collection software included
- Battery or AC operation
- Safe overload: 150% of capacity
- CE mark
Specifications
| Accuracy: | ±0.5% of full scale ±1 digit |
| Cap Dia. Range: | 0.65 - 1.55 in. [16.5 - 39.4 mm] |
| Sampling Rate: | 2,000 Hz |
| Power: | AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low. |
| Battery Life: | Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use |
| Measurement Units: | lbFin, kgFmm, Ncm |
| USB Output: | Individual data point output by pressing DATA key. Configurable up to 115,200 baud. |
| Configurable Settings: | Digital filters, USB output settings, backlight, automatic shutoff, key tones, audio alarms, default settings, calibration |
| Safe Overload: | 150% of full scale (display shows "OVER" at 110% and above) |
| Weight: | 2.2 lb [1.0 kg] |
| Included Items: | Carrying case, universal voltage AC adapter, battery, chuck key, quick-start guide, USB cable, resource CD (USB driver, MESUR™ Lite software, MESUR™gauge DEMO software, and user's guide), NIST-traceable certificate of calibration (data is available for an additional charge) |
| Environmental Requirements: | 40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating) |
| Warranty: | 3 years (see individual statement for further details) |
Ordering Information
| Model | Capacity x Resolution | ||
| lbFin | kgFmm | Ncm | |
| MTT03C-12 | 12 x 0.01 | 140 x 0.1 | 135 x 0.1 |
| MTT03C-50 | 50 x 0.05 | 580 x 0.5 | 570 x 0.5 |
| MTT03C-100 | 100 x 0.1 | 1150 x 1 | 1150 x 1 |
All models include 110V AC adapters. Add suffix E for euro plug (220V), U for UK plug (220V), or A for Australian plug (220V). Ex: MTT03C-12E, MTT03C-50U, MTT03C-100A
Optional Equipment
| Model | Description |
| CERT | Certificate of calibration with data |
| 15-1004 | MESURgauge Software |
| 09-1165 | Spare USB cable |
| 08-1026 | Spare rechargeable battery |
| AC1030 | Spare AC adapter, 110V |
| AC1031 | Spare AC adapter, 220V EUR |
| AC1032 | Spare AC adapter, 220V UK |
| AC1035 | Spare AC adapter, 220V AUS |

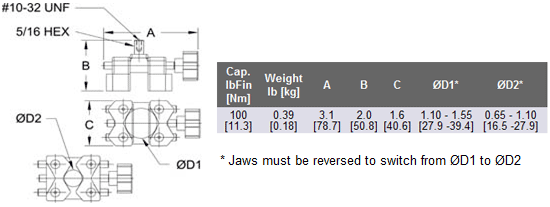

Dimensions
