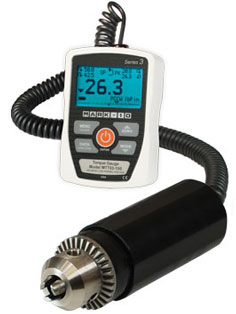

Digital Torque Gauges Series TT03
 Series TT03 digital torque gauges are designed for clockwise and counter-clockwise torque testing applications in virtually every industry, with capacities from 10 ozFin to 100 lbFin (7 to 1,150 Ncm). A dedicated remote torque sensor with Jacobs chuck can be used to grip a sample, bit, or fixture. The gauges' rugged aluminum housing allows for hand-held use or test stand mounting for more sophisticated testing requirements.
Series TT03 features a sampling rate of 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges' features and configurable parameters. USB output is provided for data collection purposes.
Set point indicators are provided for pass-fail testing. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.
The gauges include MESUR™ Lite data acquisition software. MESUR Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.
Use MESUR™gauge Analysis Software to tabulate, graph, and analyze test data.
Features
- Ergonomic torque sensor with Jacobs chuck
- Peak torque values saved and displayed
- High-speed 2,000 Hz sampling rate
- USB data output
- Programmable set points with pass/fail indicators
- Live load bar graphs with set point markers
- Peak memory for clockwise and counter clockwise readings
- Set points always displayed
- Configurable audio alarms and key tones
- MESUR™ Lite data collection software included
- Battery or AC operation
- Safe overload: 150% of capacity
- CE mark
Specifications
| Accuracy: |
±0.5% of full scale ±1 digit |
| Sampling Rate: |
2,000 Hz |
| Power: |
AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low. |
| Battery Life: |
Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use |
| Measurement Units: |
lbFin, ozFin, kgFmm, Ncm (depending on model) |
| USB Output: |
Individual data point output by pressing DATA key. Configurable up to 115,200 baud. |
| Configurable Settings: |
Digital filters, USB output settings, backlight, automatic shutoff, key tones, audio alarms, default settings, calibration |
| Safe Overload: |
150% of full scale (display shows "OVER" at 110% and above) |
| Weight: |
1.8 lb [0.8 kg] |
| Included Items: |
Carrying case, universal voltage AC adapter, battery, chuck key, quick-start guide, USB cable, resource CD (USB driver, MESUR™ Lite software, MESUR™gauge DEMO software, and user's guide), NIST-traceable certificate of calibration (data is available for an additional charge) |
| Environmental Requirements: |
40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating) |
| Warranty: |
3 years (see individual statement for further details) |
 Ordering Information
| Model |
Capacity x Resolution |
| ozFin |
lbFin |
kgFmm |
Ncm |
| MTT03-10Z |
10 x 0.01 |
- |
7 x 0.005 |
7 x 0.005 |
| MTT03-20Z |
20 x 0.02 |
- |
14 x 0.01 |
14 x 0.01 |
| MTT03-50Z |
50 x 0.05 |
- |
36 x 0.05 |
36 x 0.05 |
| MTT03-12 |
- |
12 x 0.01 |
140 x 0.1 |
135 x 0.1 |
| MTT03-50 |
- |
50 x 0.05 |
580 x 0.5 |
570 x 0.5 |
| MTT03-100 |
- |
100 x 0.1 |
1150 x 1 |
1150 x 1 |
All models include 110V AC adapters. Add suffix E for euro plug (220V), U for UK plug (220V), or A for Australian plug (220V). Ex: MTT03-20ZE, MTT03-12U, MTT03-100A
Optional Equipment
| Model |
Description |
| CERT |
Certificate of calibration with data |
| 15-1004 |
MESURgauge Software |
| 09-1165 |
Spare USB cable |
| 08-1026 |
Spare rechargeable battery |
| AC1030 |
Spare AC adapter, 110V |
| AC1031 |
Spare AC adapter, 220V EUR |
| AC1032 |
Spare AC adapter, 220V UK |
| AC1035 |
Spare AC adapter, 220V AUS |

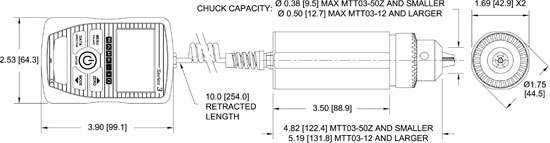

Dimensions
|
