Mark-10 Cap Torque Tester Series TT01

Mark-10 Cap Torque Tester Series TT01 Mark-10 Series TT01 Cap Torque Testers are designed to measure application and removal torque of bottle caps up to 100 lbFin [11.5 Nm]. Adjustable posts effectively grip a broad range of container shapes and sizes, while optional flat and adjustable jaws are available for unique profiles. A rugged aluminum design, and simple, intuitive operation allow for use in laboratory and production environments.

Class-leading accuracy of ±0.3% and blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications.

The TT01 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output and zeroing upon cap removal, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. Password protection is provided to prevent unauthorized changes to settings and calibration.

Mark-10 Series TT01 testers include MESUR™ Lite data acquisition software. MESUR™ Lite tabulates continuous or single point data. Data stored in the TT01's memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.

Use MESUR™gauge Analysis Software to tabulate, graph, and analyze test data.

Features

Moveable posts and optional jaws accommodate a wide range of sample shapes and sizes
USB, RS-232, Mitutoyo, and analog outputs
Automatic output, data storage, and zeroing upon bottle cap removal helps automate testing processes
1,000-point data memory with statistics and outputs
Password protection prevents unauthorized changes
Programmable set point indicators and outputs for pass/ fail determination
High-speed 7,000 Hz sampling rate accurately captures peak torque values
Configurable audio alarms and key tones
5 selectable units of measurement
MESUR™ Lite data collection software included

Specifications

Accuracy:	±0.3% of full scale
Sampling Rate:	7,000 Hz
Power:	AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
Battery Life:	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Measurement Units:	ozFin, lbFin, lbFft, Nm, Ncm
Outputs:	USB / RS-232: Configurable up to 115,200 baud. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1 VCD, ±0.25% of full scale at capacity. General Purpose: Three open drain outputs, one input. Set Points: Three open drain lines.
Configurable Settings:	Digital filters, outputs, automatic output/data storage/zero, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration
Safe Overload:	150% of full scale (display shows "OVER" at 110% and above)
Weight:	8.4 lbs [3.8 kg]
Included Items:	Universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR™ Lite software, MESUR™gauge DEMO software, and user's guide), and NIST-traceable certificate of calibration with data.
Warranty:	3 years (see individual statement for further details)

Optional Equipment

>> MESURgauge Software
Tabulates and plots load vs. time or travel. Also calculates statistics, exports to Excel, and more. Requires output cable.

<< Flat Rubber Jaws
Set of rubber jaws for gripping square or odd shaped containers.

>> Adjustable Jaws
Rubber-edged arms may be independently repositioned to accommodate unique samples.

<< Carrying Case
Provides storage space for the TT01 tester, gripping jaws, AC adapter, and accessories.

>> Calibration Kit
Complete set of brackets, cable, AC1036 and hardware for calibration of any Series TT01 torque tester. Note that weights are not available from NexGen Ergonomics or Mark-10.

Ordering Information

Series TT01 torque testers include a set of four posts, AC adapter, battery, user's manual, and NIST-traceable certificate of calibration.

Model	Capacity x Resolution
Model	ozFin	lbFin	lbFft	Ncm	Nm
MTT01-12	192 x 0.1	12 x 0.005	1 x 0.0005	135 x 0.1	1.35 x 0.001
MTT01-25	400 x 0.2	25 x 0.01	2 x 0.001	290 x 0.2	2.9 x 0.002
MTT01-50	800 x 0.5	50 x 0.02	4 x 0.002	570 x 0.5	5.7 x 0.005
MTT01-100	1600 x 1	100 x 0.05	8 x 0.005	1150 x 0.5	11.5 x 0.005

All models include 110V AC adapters. Add suffix "E" for euro plug (220V), "U" for UK plug (220V), or "A" for Australian plug (220V). Example: MTT01-12E, MTT01-50U, MTT01-100A

Optional Equipment

Model	Description
CT001	Flat jaws for TT01, pair
CT002	Carrying case for TT01
CT003	Adjustable jaws for TT01, pair
CT004	Spare set of posts for TT01, 4
AC1036	Calibration kit for TT01 (weights not included)
15-1004	MESURgauge Software
09-1165	Spare USB cable
09-1163	Cable, Series TT01 to RS-232
08-1026	Spare rechargeable battery
AC1030	Spare AC adapter, 110V
AC1031	Spare AC adapter, 220V EUR
AC1032	Spare AC adapter, 220V UK
AC1035	Spare AC adapter, 220V AUS

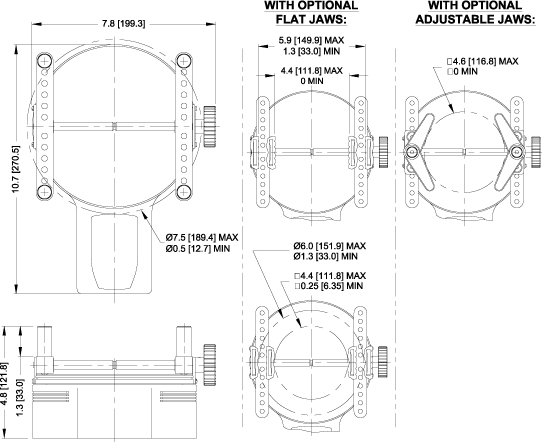

Dimensions

Mark-10 Cap Torque Tester Series TT01 Specs
