BGI Remote Force/Torque Sensors

BGI Force Sensors

Tension and Compression Force Sensors Series SSM

Force measurement sensor for tensile and compressive loads in a wide variety of applications, available in capacities from 0.25 lb to 100 lb. Thread on two sides can accept a variety of hooks and implements, making this sensor particularly well suited for inline tests.

Features & Specifications

  • Member of the BGI family of interchangeable sensors
  • "Personality module" holds all calibration and configuration data
  • Rugged aluminum housing
  • Measures tensile and compressive forces
  • NIST-traceable certificate of calibration included
  • Accuracy: ±0.15% of full scale ±1 digit + BGI
  • Weight: 0.4 lbs (0.2 kg)
  • Warranty: 3 years

Ordering Information

Model Capacity x Resolution
SSM025 0.25 X 0.0001 lb, 100 x 0.05 gF, 1 x 0.0005 N
SSM05 0.5 x 0.0002 lb, 250 x 0.1 gF, 2.5 x 0.001 N
SSM2 2 x 0.001 lb, 1 x 0.0005 kgF, 10 x 0.005 N
SSM5 5 x 0.002 lb, 2.5 x 0.001 kgF, 25 x 0.01 N
SSM10 10 x 0.005 lb, 5 x 0.002 kgF, 50 x 0.02 N
SSM20 20 x 0.01 lb, 10 x 0.005 kgF, 100 x 0.05 N
SSM50 50 x 0.02 lb, 25 x 0.01 kgF, 250 x 0.1 N
SSM100 100 x 0.05 lb, 50 x 0.02 kgF, 500 x 0.2 N
AC1018 Mounting kit, SS/SSM to TS-Series test stands

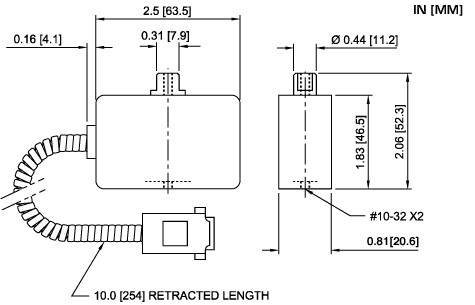

Dimensions

Compression Force Sensor Series SBC

Button sensor for compressive loads of up to 10,000 lb. Compact and rugged, the SBC is ideal for heavy duty applications with space constraints.

  • Member of the BGI family of interchangeable sensors
  • "Personality module" holds all calibration and configuration data
  • Small size
  • Stainless steel construction
  • NIST-traceable certificate of calibration included
  • Accuracy: ±0.5% of full scale ±1 digit + BGI
  • Weight: 0.4 lbs (0.2 kg)
  • Warranty: 3 years

Ordering Information

Model Capacity x
Resolution		 ØA ØB C D ØE F ØG
SBC100 100 x 0.05 lb,
50 x 0.02 kgF,
500 x 0.2 N		 1.23 [31.3] 0.32 [8.1] 0.05 [1.3] 0.39 [9.9] 1.0 [25.4] THRU 0.83 [21.1]
SBC200 200 x 0.1 lb,
100 x 0.05 kgF,
1000 x 0.5 N
SBC500 500 x 0.2 lb,
250 x 0.1 kgF,
2500 x 1 N
SBC1000 1000 x 0.5 lb,
500 x 0.2 kgF,
5000 x 2 N
SBC2000 2000 x 1 lb,
1000 x 0.5 kgF,
10000 x 5 N
SBC5000 5000 x 2 lb,
2500 x 1 kgF,
25 x 0.01 kN		 1.48 [37.6] 0.43 [10.9] 0.07 [1.8] 0.62 [15.8] 1.25 [31.8] 0.25 [6.4] 1.08 [27.4]
SBC10000 10000 x 5 lb,
5000 x 2 kgF,
50 x 0.02 kN

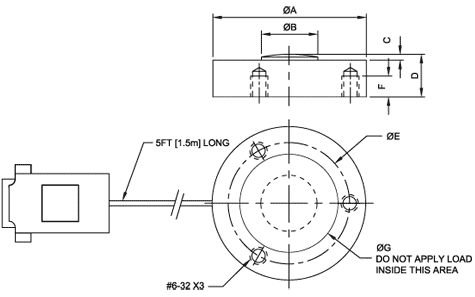

Dimensions

Tension and Compression Force Sensor Series SS

A rugged force measurement sensor for tensile and compressive forces up to 10,000 lb. Durable S-Beam architecture allows for many applications and setups. Solid steel construction ensures many years of use in factory or laboratory environments.

  • Member of the BGI family of interchangeable sensors
  • "Personality module" holds all calibration and configuration data
  • Measures tensile and compressive forces
  • NIST-traceable certificate of calibration included
  • Accuracy: ±0.15% of full scale ±1 digit + BGI
  • Weight: From 1.9 lbs (0.9 kg) to 3 lbs (1.4)
  • Warranty: 3 years

Ordering Information

Model Capacity x Resolution A B C D E
SS50 50 x 0.02 lb, 25 x 0.01 kgF, 250 x 0.1 N 2.40 [61.0] 2.00 [50.8] 0.46 [11.7] 0.65 [16.5] 1/4-28 UNF
SS100 100 x 0.05 lb, 50 x 0.02 kgF, 500 x 0.2 N
SS200 200 x 0.1 lb, 100 x 0.05 kgF, 1000 x 0.5 N
SS500 500 x 0.2 lb, 250 x 0.1 kgF, 2500 x 1 N 0.71 [18.0] 0.90 [22.9] 1/2-20 UNF
SS1000 1000 x 0.5 lb, 500 x 0.2 kgF, 5000 x 2 N
SS2000 2000 x 1 lb, 1000 x 0.5 kgF, 10000 x 5 N 0.96 [24.4] 1.15 [29.2]
SS5000 5000 x 2 lb, 2500 x 1 kgF, 25 x 0.01 kN 3.90 [99.1] 3.00 [76.2] 3/4-16 UNF
SS10000 10000 x 5 lb, 5000 x 2 kgF, 50 x 0.02 kN
AC1018 Mounting kit, SS/SSM to TS-Series test stand

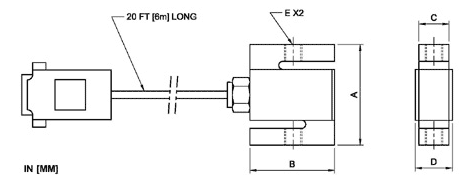

Dimensions

Miniature Force Sensors Series SJR

Extremely compact force measurement sensor for tensile and compressive loads in applications with limited space. The Series SJR is available in capacities from 0.25 lb to 100 lb (1 N to 500 N). Every capacity has the same miniature dimensions: 0.85" x 0.30" x 0.75" (21.6 mm x 7.6 mm x 19.1 mm). The sensors feature outstanding mechanical overload protection of up to 1,000% percent of full scale for most applications and threaded holes on two sides for the mounting of attachments or implements.

Features & Specifications

  • Member of the BGI family of interchangeable sensors
  • "Personality module" holds all calibration and configuration data
  • Measures tensile and compressive forces
  • Mechanical overload protection of up to 1,000% of full scale for all models, 200% for SJR50 and SJR100 when used in tension only
  • NIST-traceable certificate of calibration included
  • Accuracy: ±0.2% of full scale ±1 digit + BGI
  • Weight: 0.015 lbs (0.007 kg)
  • Warranty: 3 years

Ordering Information

Model Capacity x Resolution
SJR025 0.25 X 0.0001 lb, 100 x 0.05 gF, 1 x 0.0005 N
SJR05 0.5 x 0.0002 lb, 250 x 0.1 gF, 2.5 x 0.001 N
SJR2 2 x 0.001 lb, 1 x 0.0005 kgF, 10 x 0.005 N
SJR5 5 x 0.002 lb, 2.5 x 0.001 kgF, 25 x 0.001 N
SJR10 10 x .005 lb, 5 x 0.002 kgF, 50 x 0.02 N
SJR20 20 x 0.01 lb, 10 x 0.005 kgF, 100 x 0.05 N
SJR50 50 x 0.02 lb, 25 x 0.01 kgF, 250 x 0.1 N
SJR100 100 x 0.05 lb, 50 x 0.02 kgF, 500 x 0.2 N

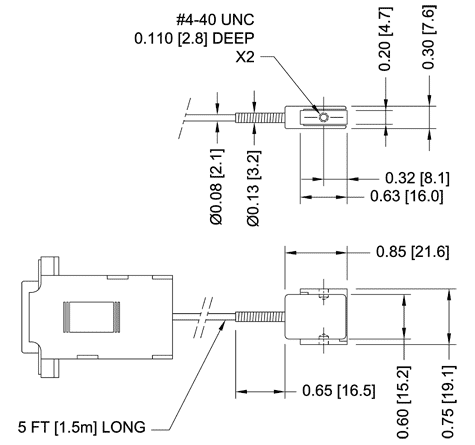

Dimensions

BGI Torque Sensors

Closure Torque Sensors Series STB

Ideal for testing torque on bottle caps, closures, valves, fasteners, and other items in sizes ranging between 0.56 - 5.7 in [14 - 148 mm] in diameter. Models contain reversible jaws or movable posts to easily accommodate a variety of shapes and sizes. Capacities available from 10 ozin to 100 lbin.

Features & Specifications

  • Member of the BGI family of interchangeable sensors
  • "Personality module" holds all calibration and configuration data
  • Rugged aluminum housing
  • Reversible jaws for round or rectangular containers
  • Spill proof construction
  • May be used for torque tool calibration
  • NIST-traceable certificate of calibration included
  • Accuracy: ±0.7% of full scale ±1 digit + BGI
  • Weight: STB10Z-STB50Z - 2.2 lbs (1.0 kg), STB12-STB100 - 5.4 lbs (2.5 kg)
  • Warranty: 3 years

Ordering Information

Model Capacity x Resolution
STB10Z 10 x 0.01 ozin, 7 x 0.005 kgFmm, 7 x 0.005 Ncm
STB20Z 20 x 0.02 ozin, 14 x 0.01 kgFmm, 14 x 0.01 Ncm
STB50Z 50 x 0.05 ozin, 36 x 0.05 kgFmm, 35 x 0.05 Ncm
STB12 12 x 0.01 lbin, 140 x 0.1 kgFmm, 135 x 0.1 Ncm
STB50 50 x 0.05 lbin, 580 x 0.5 kgFmm, 570.0 x 0.5 Ncm
STB100 100 x 0.1 lbin, 1150 x 1 kgFmm, 1150 x 1 Ncm

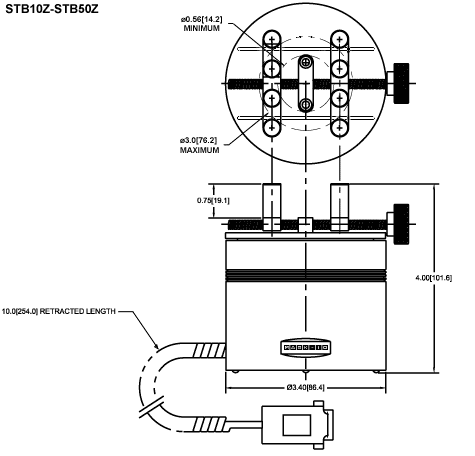

Dimensions

Torque Sensor for Tool Calibration Series STC

Calibrate torque tools with this torque measurement sensor, or use it as a component of a torque testing system. Tapped holes on every surface allow for easy mounting to a work bench, or fixture within a testing system. Capacities available from 10 ozin to 100 lbin.

Features & Specifications

  • Member of the BGI family of interchangeable sensors
  • "Personality module" holds all calibration and configuration data
  • Rugged aluminum housing
  • Universal mounting
  • May be used for torque tool calibration or as a component of a torque testing system
  • NIST-traceable certificate of calibration included
  • Accuracy: ±0.35% of full scale ±1 digit + BGI
  • Weight: 1.2 lbs (0.5 kg)
  • Warranty: 3 years

Ordering Information

Model Capacity x Resolution Safe Overload
STC10Z 10 x 0.01 ozin, 7 x 0.005 kgFmm, 7 x 0.005 Ncm 300% of capacity
STC20Z 20 x 0.02 ozin, 14 x 0.01 kgFmm, 14 x 0.01 Ncm
STC50Z 50 x 0.05 ozin, 36 x 0.05 kgFmm, 35 x 0.05 Ncm
STC12 12 x 0.01 lbin, 140 x 0.1 kgFmm, 135 x 0.1 Ncm 150% of capacity
STC50 50 x 0.05 lbin, 580 x 0.5 kgFmm, 570 x 0.5 Ncm
STC100 100 x 0.1 lbin, 1150 x 1 kgFmm, 1150 x 1 Ncm
AC1006 Mounting kit, STC, table top
AC1014 3/8" Jacobs chuck for STC

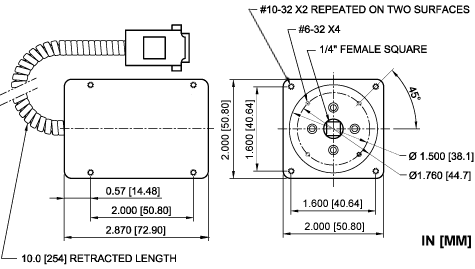

Dimensions

Torque Wrenches Series STW

Ideal for testing application and removal torque on bolts and other fasteners, with numerous uses in the automotive, aerospace, and other industries.

Features & Specifications

  • Ideal for checking torque on bolts and other fasteners
  • Rubber grip
  • Member of the BGI family of interchangeable sensors
  • "Personality module" holds all calibration and configuration data
  • Stainless steel and aluminum construction
  • NIST-traceable certificate of calibration included
  • Accuracy: ±0.6% of full scale ±1 digit + BGI
  • Weight: From 1.9 lbs (0.9 kg) to 2.8 lbs (1.3 kg)
  • Warranty: 3 years

Ordering Information

Model Capacity x Resolution A B C
STW100 100 x 0.1 lbFin, 1150 x 1 kgFmm, 1150 x 1 Ncm 3/8" SQUARE 0.5 [12.7] 11.0 [280.0]
STW500 500 x 0.5 lbFin, 5000 x 5 kgFmm, 5000 x 5 Ncm 14.0 [355.0]
STW1000 1000 x 1 lbFin, 11500 x 10 kgFmm, 11000 x 10 Ncm 1/2" SQUARE 0.7 [17.8] 20.0 [508.0]

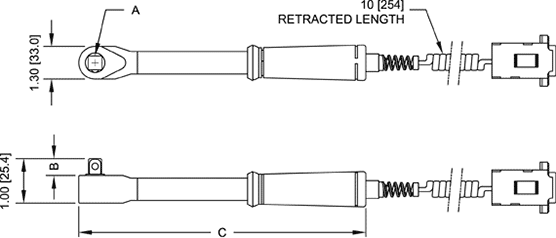

Dimensions

Wrench Extension Torque Sensors Series STE

Convert any wrench to a torque tool with this sensor, or use it as a component of a torque testing system.

Features & Specifications

  • Member of the BGI family of interchangeable sensors
  • "Personality module" holds all calibration and configuration data
  • Stainless steel and aluminum construction
  • NIST-traceable certificate of calibration included
  • Accuracy: ±0.6% of full scale ±1 digit + BGI
  • Weight: From 0.6 lbs (0.27 kg) to 2 lbs (0.9 kg)
  • Warranty: 3 years

Ordering Information

Model Capacity x Resolution A ØB ØC Drive Size
STE20 20 x 0.02 lbin, 230 x 0.2 kgFmm, 220 x 0.2 Ncm 1.88 [47.8] 0.56 [14.2] 1.00 [25.4] 1/4"
STE50 50 x 0.05 lbin, 580 x 0.5 kgFmm, 570 x 0.5 Ncm
STE100 100 x 0.1 lbin, 1150 x 1 kgFmm, 1150 x 1 Ncm
STE200 200 x 0.2 lbin, 2300 x 2 kgFmm, 2200 x 2 Ncm 3.00 [76.2] 0.73 [18.5] 1.12 [28.6] 3/8"
STE400 400 x 0.5 lbin, 4600 x 5 kgFmm, 4500 x 5 Ncm
STE1000 1000 x 1 lbin, 11500 x 10 kgFmm, 11000 x 10 Ncm 3.50 [88.9] 0.98 [24.9] 1.25 [31.8] 1/2"
STE5000 5000 x 5 lbin, 55 x 0.05 kgFm, 550 x 0.5 Nm 5.00 [127.0] 1.48 [37.6] 2.0 [50.8] 3/4"
AC1007 Mounting kit, STE 200/400, table top

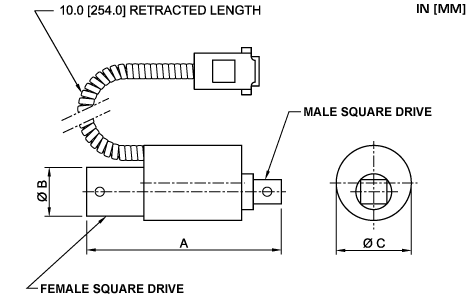

Dimensions

Universal Torque Sensors Series STJ

Measure bi-directional torque for a wide variety of applications. Contains a chuck for samples up to 1/2" in diameter, depending on capacity. The sensor can be used as a hand held device, or mounted to a torque test stand. Capacities available from 10 ozin to 100 lbin.

Features & Specifications

  • Member of the BGI family of interchangeable sensors
  • "Personality module" holds all calibration and configuration data
  • Rugged aluminum housing
  • NIST-traceable certificate of calibration included
  • Accuracy: ±0.35% of full scale ±1 digit + BGI
  • Weight: From 1.4 lbs (0.6 kg)
  • Warranty: 3 years

Ordering Information

Model Capacity x Resolution A Chuck Capacity
STJ10OZ 10 x 0.01 ozin, 7 x 0.005 kgFmm, 7 x 0.005 Ncm 4.82 [122.4] 0.38 [9.5]
STJ20OZ 20 x 0.02 ozin, 14 x 0.01 kgFmm, 14 x 0.01 Ncm
STJ50OZ 50 x 0.05 ozin, 36 x 0.05 kgFmm, 35 x 0.05 Ncm
STJ12 12 x 0.01 lbin, 140 x 0.1 kgFmm, 135 x 0.1 Ncm 5.19 [131.8] 0.5 [12.7]
STJ50 50 x 0.05 lbin, 580 x 0.5kgFmm, 570 x 0.5 Ncm
STJ100 100 x 0.1 lbin, 1150 x 1 kgFmm, 1150 x 1 Ncm
AC1007 Mounting kit, STJ, table top

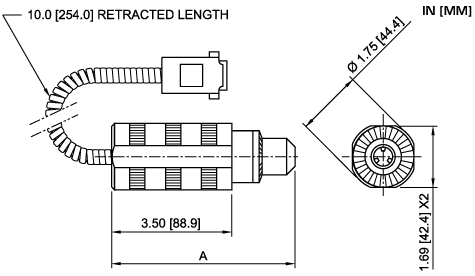

Dimensions

Universal Torque Sensors Series STH

A great solution for general bi-directional torque testing applications requiring different sample sizes. Three interchangeable chuck capacities and bit holder are available. The STH has superb overload protection and is available in capacities from 10 ozin to 100 lbin.

Features & Specifications

  • Member of the BGI family of interchangeable sensors
  • "Personality module" holds all calibration and configuration data
  • Outstanding overload protection
  • Interchangeable chucks (order separately)
  • NIST-traceable certificate of calibration included
  • Accuracy: ±0.20% of full scale ±1 digit + BGI
  • Weight: From 1.4 lbs (0.6 kg)
  • Warranty: 3 years

Ordering Information

Model Capacity x Resolution
STH10Z 10 x 0.01 ozin, 7 x 0.005 kgFmm, 7 x 0.005 Ncm
STH20Z 20 x 0.02 ozin, 14 x 0.01 kgFmm, 14 x 0.01 Ncm
STH50Z 50 x 0.05 ozin, 36 x 0.05 kgFmm, 35 x 0.05 Ncm
STH12 12 x 0.01 lbin, 140 x 0.1 kgFmm, 135 x 0.1 Ncm
STH50 50 x 0.05 lbin, 580 x 0.5 kgFmm, 570 x 0.5 Ncm
STH100 100 x 0.1 lbin, 1150 x 1 kgFmm, 1150 x 1 Ncm
G1016-1 Jacobs chuck for STH, 0.028"-0.25"
G1016-2 Jacobs chuck for STH, 0.062"-0.375"
G1016-3 Jacobs chuck for STH, 0.078"-0.5"
G1017 Bit holder for STH, 1/4" hex

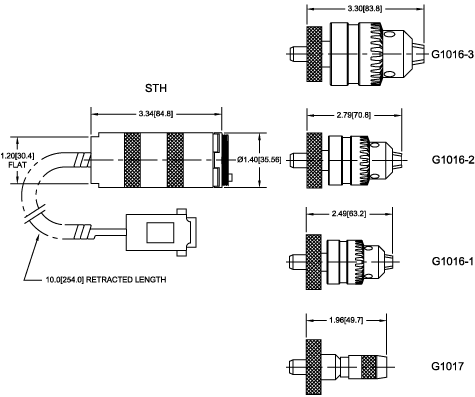

Dimensions
