EPS/R2 Pressure Mapping Foot Plates

The new EPS/R2 resistive baropodometric products are battery powered and offer a Wi-Fi connection. The product line includes LITE (Plexiglas), FLEX (fabric) and RIGID (aluminum). You can use it for postural, orthostatic and dynamic analysis of a single foot. All product options include the options of USB and Bluetooth connectivity.

LITE

The new version of resistive baropodometric platform EPS/R2 LITE is ideal for the professional looking for a lightweight but resistant solution. The lateral magnet connection of coverage allows the cleaning and the maintenance in complete autonomy. LITE is made with recycled Plexiglas.

LITE is battery powered and includes a Wi-Fi connection option. The new electronics "L.A. SMART" will allow you to switch from a minimum frequency of 10hz to a maximum of 300hz. You can use it for postural, orthostatic and dynamic analysis of a single foot.

The system comes with a fitted bag to simplify the transport. The top part of the platform has a handle integrated to the structure.

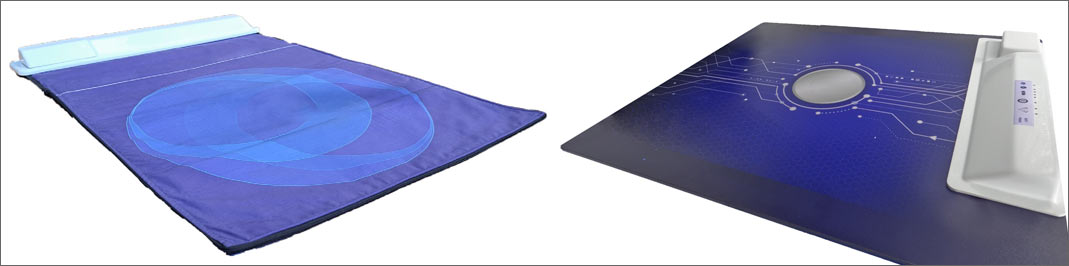

FLEX

FLEX is the new thin flexible version of the EPS/R2 baropodometric platform with USB and Wi-Fi connectability options and is battery powered. The classic software BIOMECH STUDIO PC software can be used for USB connections . Using the BIOMECH app, once the evaluation is finished, you can have a quick summary of the main data directly on your tablet. For a deeper analysis, you can access the protected area of the Biomech WEB LAB CLOUD to compare graphs, analysis and print the related reports for subjects/patients.

Sensors are made using the most innovative technology of materials "on fabric" and weight is approximately 1 kg. EPS/R2 FLEX allows for easy transport and rapid testing both in static and in dynamic modes.

RIGID

EPS/R2 RIGID is the new resistive baropodometric platform and is battery powered. The new electronics "L.A. SMART" allows both USB and Wi-Fi communication with an acquisition frequency that changes depending on the device used.

Equipped with LED indicators, it can be used for postural, orthostatic and dynamic analysis of a single foot. The included bag allows for easy transport. Magnetic closures that allow for the cleaning and maintenance in complete autonomy are included.

Software

WP2 and TS10 software is included for all 3 product options. TS10 and Biomech software run only on Windows PCs. WP2 is multiplatform (PCs with Windows or tablets). Biomech software is available for RIGID and FLEX.

Fully compatible with Windows systems, WP2 delivers a robust and efficient platform for precise data acquisition, visualization, and analysis.

Specifications

	LITE	FLEX	RIGID
Thickness	9 mm	1 mm	7 mm
Weight	4 kg	1 kg	5kg
Material Base	Plexiglass	Fabric	Aluminum
Width and Size	50x65 cm	50x70 cm	50x60 cm
Type of Sensor	Resistive	Resistive Active Tissue	Resistive
Sensor Size	10x10 mm	10x10 mm	10x10 mm
Number of Sensors	2304 (48x48)	2304 (48x48)	2304 (48x48)
Pressure Range	10-500 kpa	10-500 kpa	10-500 kpa
Frequency	10-300 Hz	10-300 Hz	10-300 Hz
Connection	USB/WIFI	USB/WIFI	USB/WIFI
Power Supply	3.7 V Battery Rechargeable	3.7 V Battery Rechargeable	3.7 V Battery Rechargeable
