BIMS™ - Baseline Integrated Tools
for Measuring Progress
BIMS continues in development and is not yet available for sale.
Perform manual muscle testing with BIMS™, a sophisticated-yet-simple state-of-the-art system that combines dynamometry with a comprehensive software package to produce real-time force curves, customized statistics, reports...and more.

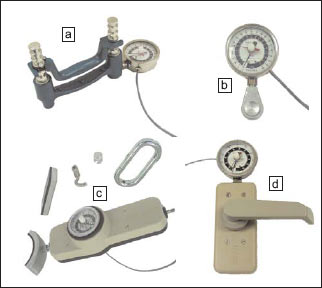

BIMS Devices (a) hand dynamometer, (b) pinch gauge, (c) push pull dynamometer and (d) pinch gauge BIMS enables strength measurements to be viewed in real time on your computer screen as well as on the dynamometer dial face. BIMS stores data in a searchable database. The BIMS engine instantly generates Test and Patient-specific reports. With BIMS you can see, analyze and document the force-curve, not just the maximum.
BIMS has been engineered to be highly intuitive and simple to use with its library of predefined protocols and streamlined interfaces. A new user can perform Tests and Analysis with minimal training. The instruction manual, the integrated on screen Help Menu, and the BIMS Test Director guide a BIMS user through every facet of BIMS.

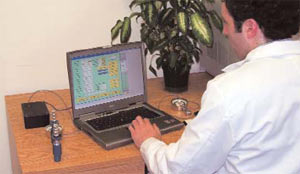

Typical BIMS setup includes a hand dynamometer and pinch gauge. A BIMS analysis screen is being viewed on a laptop. See screenshots below. BIMS makes it easy to measure the total amount of force exerted in user-defined time intervals. Practitioners or researchers can define metrics and protocols that are tailored to their very specific needs. BIMS comes with a library of protocols that can be implemented and analyzed with a few clicks of the mouse.
BIMS comes with all necessary accessories in a compact, lightweight case for easy transportation. BIMS connects through the USB port of any Windows XP® or newer laptop or PC that has the BIMS software installed. Simply install BIMS software on your laptop and you can use it at a client's site or your office.
BIMS instruments are manufactured in the USA using Baseline® parts. BIMS has been engineered for the future to support additional devices and capabilities.
- Library of Predefined Testing Protocols
- Instant Results
- Built-in Report Generator
- Exportable Data
- Searchable Database
- Modular Design for Hardware and Software Expansion
- Intuitive
- Portable and Lightweight
- 300 Samples/Second!

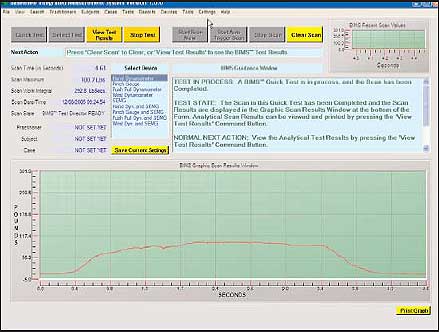

BIMS Main Screen consists of a tool bar that controls settings, a second row tool bar that control tests. Upper right hand graph charts force in real-time. Window below it gives instructions. Big graph on bottom displays force curve after the test. Data field in upper left displays basic test results.

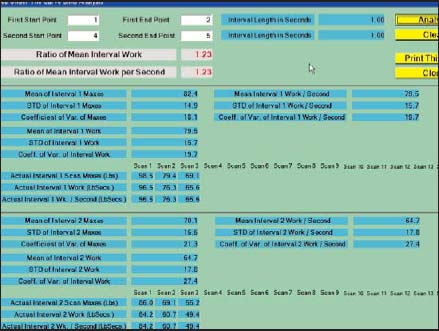

BIMS Area Under The Curve Analysis is a predefined algorithm used to compute intra-curve statistics to develop a coefficient of fatigue. You control all of the variables!

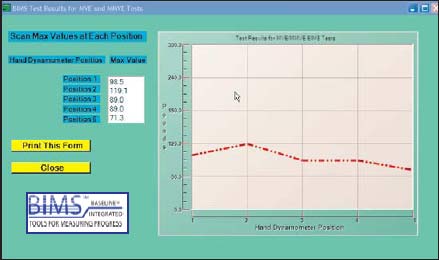

5-Position Grip Test is one of the pre-defined testing protocols. Each testing protocol consists of instructions, test-specific reports, database entries, and instant feedback and analysis.
Rapid Exchange Test is another pre-defined test. Either immediately after the Test, or weeks after a test, use the BIMS database search to create comprehensive, printable, specific Reports.

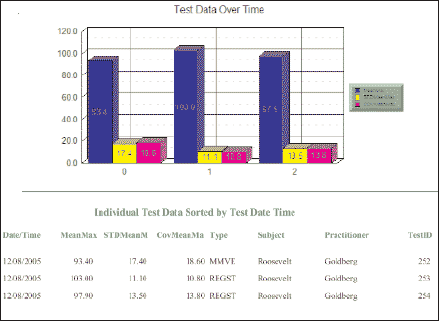

BIMS Test History Report allows a practitioner to track each patients progress from visit to visit with the automatically generated BIMS Test History Report!

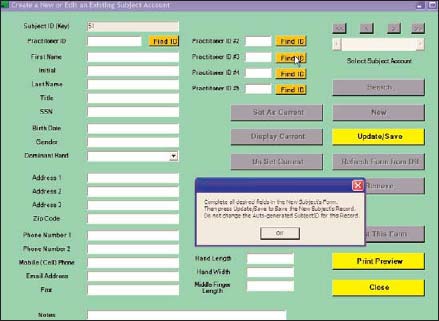

BIMS Database consists of a network of Practitioner, Subject, Test Scan, and Settings data. Data is stored in the BIMS database for quick retrieval, analysis, and report generation.
Complete BIMS Systems
Complete with instrument, analog to digital converter with USB and BIMS cable, software and carrying bag. Computer sold separately.
12-0020 hand dynamometer
12-0022 pinch gauge
12-0024 push-pull dynamometer
12-0026 wrist dynamometer
BIMS Accessories
These are included with complete system.
12-0030 plug & play software
12-0155 digital converter
12-0041 BIMS converter cable
12-0042 USB cable
Stand-Alone BIMS Dynamometers
Transducer with digital output only (no gauge):
12-0248 300 lb. digital hand
12-0238 100 lb. digital pinch
12-0384 500 lb. digital push-pull
12-0267 500 lb. digital wrist
Analog (dial) gauge with digital output (A/D):
12-0021 300 lb. A/D hand
12-0023 100 lb. A/D pinch
12-0025 500 lb. A/D push-pull
12-0027 500 lb. A/D wrist
BIMS requires Windows XP OS, 256MB of RAM, 10MB on primary hard disk,
1024x768 monitor resolution, and USB port.
