FSA Prime Seat Evaluation System

FSA Prime is a simplified, dedicated use system. Aimed at the straightforward assessment, FSA Prime is designed to make your seat assessments easy, fast and uniform.

Product Specifications

FSA Prime uses the same industry leading SoftFlex sensing mat as our full medical systems. The Prime Interface Module is compact, USB powered, and permanently connected to the SoftFlex Mat. Offering similar technical performance to the full system, Prime features reduced complexity and enhanced ease of use.

Components Included

FSA Softflex Seat Mat Package - ACC02

The FSA SoftFlex series are the premier clinical pressure mapping tools worldwide. Soft, silent, flexible, conformable, durable and precise, FSA is the tool of choice for the seating professional.

Our focus on providing education, knowledge and customer support means you get more than a simple technical tool. The FSA community, resources and services provide the confidence and backing you need to excel.

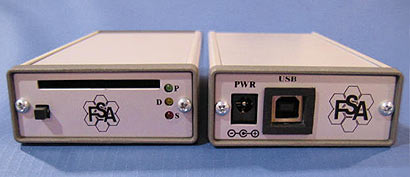

FSA Prime System Base - ACC015

FSA Prime or Type V computer interface is a dedicated-use system, designed for simple operation and affordability, while sacrificing none of the precision and reliability that distinguishes FSA.

Sensing mats are hardwired to the interface module to simplify maintenance, limit connections and limit confusion when multiple systems with multiple sensing mats are used. Type V interfaces are USB connected and powered. In a remote sensing or wireless application they can be powered by an AC/DC adaptor or by a battery pack.

The interface is a wireless G device. It is built into the interface and the antenna exits the rear of the case where the FSA logo is shown on the rear plate next to the USB connection. With a simple wireless G router it is very easy to set up one or more of the Type V interfaces to report to one computer. Each interface has on board memory and an external trigger to start and stop the remote data logging activity.

Specifications

Dimensions: 5.5" x 2.75" (14 cm x 7 cm)
Weight: 17.5 oz. (490 g)
Input: Dedicated to FSA Mat
Output: USB
Power Supply: USB
Indicator lights for power, diagnostics and scan rate

Optional Extras

Built in Wireless 802.11g
