Digital Torque Tool Tester Series ST

ST Torque Tool Testers present a simple yet accurate solution for testing torque screwdrivers, wrenches, and other tools. Applications exist in manufacturing facilities in virtually every industry. The ST features a solid aluminum housing, making it rugged enough for many years of service in production or laboratory use, while a universal receptacle with square drive and grooves accepts common bits and attachments. The ST captures peak torque in both clockwise and counterclockwise directions.

Note: The ST cannot be used with impact or air tools.

Simply place the torque tool into the universal receptacle and twist. The readout will show the torque value in the clockwise or counterclockwise direction.

Features and Specifications

  • Outstanding value
  • Accepts many types of torque tools
  • Selectable units of measurement
  • Peak memory for clockwise and counter clockwise readings
  • RS-232 and Mitutoyo (Digimatic) outputs
  • Optional bench mounting bracket
  • Solid aluminum housing
  • 3 capacities available: 12 lbin (135 Ncm), 50 lbin (570 Ncm), 100 lbin (1150 Ncm)
  • Battery or AC operation
  • Mounting holes for bench mounting
  • Accuracy: ± 0.5% of full scale ±1 digit
  • Sampling rate: 65 readings/sec
  • Safe overload: 150% of capacity
  • Battery: 9V (non-rechargeable), 30 hours of continuous operation
  • Weight: 4.8 lbs (2.2 kg)
  • Environmental requirements: 40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
  • Warranty: 3 years
  • CE mark

Optional Equipment

<< Bench Mounting Bracket
Allows the ST to be mounted at any angle. Includes mounting hardware.

>> WinWedge Software
Allows the torque tester to send data to a PC for further analysis in Windows® applications such as Excel®.

Output Cables
Send test data to a PC, statistical printer, or other data collector for further analysis.






Ordering Information

Series ST torque testers include an AC adapter, battery, user's manual, and NIST-traceable certificate of calibration.

Model Capacity x Resolution
ST12 12 x 0.01 lbin, 140 x 0.1 kgFmm, 135 x 0.1 Ncm, 110V
ST50 50 x 0.05 lbin, 580 x 0.5 kgFmm, 570 x 0.5 Ncm, 110V
ST100 100 x 0.1 lbin, 1150 x 1 kgFmm, 1150 x 1 Ncm, 110V

Optional Equipment

Model Description
ST001 Bench mounting bracket for ST
ST002 Carrying case for ST
15-1002 WinWedge 32 Std Software
15-1003 WinWedge 32 Pro Software
09-1048A Cable, ST to RS-232, 9-pin
09-1048 Cable, ST to RS-232, 25-pin
09-1047 Cable, ST to Mitutoyo SPC

For 220V operation add suffix E to model number. Example: ST50E

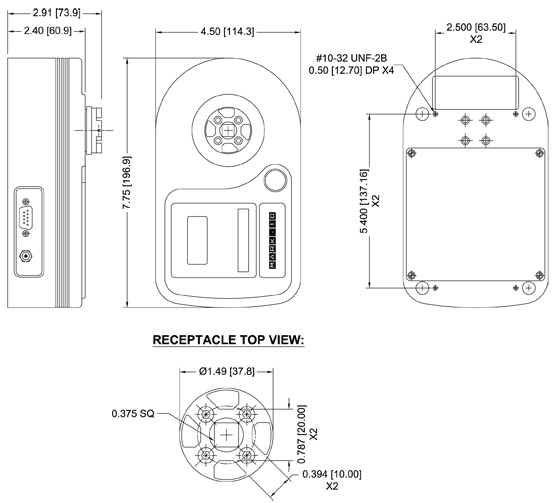

Dimensions
