Ergonomics Testing Kits Series MKB

Test push/pull muscle strength and functional task requirements
up to 500 lb

These kits make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, physical therapy, and ergonomic studies. These kits present the ergonomist and other professionals with a simple and economical testing solution.

The kit includes a force gauge with data output and a serial cable for output of force data to a PC via RS-232. The kits are available in capacities of 200 lb and 500 lb.

Kit Contents

• Digital force gauge Series BG
  • ±0.2% accuracy
  • RS-232, Mitutoyo, and analog outputs
  • Compact design, easy to hold
  • Measure in lb, kg, or N
  • Peak force capture for push and pull forces
  • Durable construction ensures longevity
  • Battery or AC operation
• Output cable
  Serial cable for connection to a PC via RS-232.
• Double- and single-handles
  Non-slip rubber handles for good grip and consistent test results.
• Padded attachments
  Flat, curved, and square padded attachments mount directly to the force gauge for conducting musculoskeletal strength analysis.
• Implements

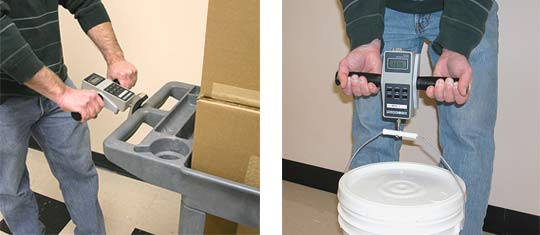

  Rugged hook and flat adapter attach directly to the force gauge for conducting job task analysis and ergonomic analysis in push, pull, and lift forces.
• Accessories
  Series MKB kits include a cushioned carrying case, AC adapter, battery, user's manual, and NIST-traceable certificate of calibration.

Optional Equipment

MESURgauge software
Tabulates and plots load vs. time or load vs. travel. Also calculates statistics, exports to Excel, and more.

RS-232 to USB adapter
Converts RS-232 to USB output. Includes USB cable and installation CD.

Ordering Information

For 220V operation add suffix E to model number. Example: MKB500E
