Premium Force Gauges Series BG

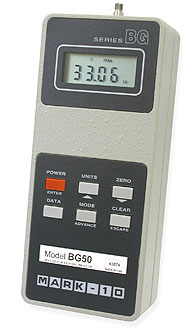

The Series BG Digital Force Gauge is an advanced force measurement solution, with sophisticated measurement capabilities, data outputs, computer control capabilities, and a long list of features and configurable settings. The BG can stop motorized test stand travel at user-selectable set points, and can also prevent force overload (when used with the ESM motorized test stand). Go / no go testing can also be accomplished with an optional plug-in hi / lo limits indicator.

Features and Specifications

• Compatible with all Mark-10 test stands and grips
• RS-232, Mitutoyo and analog outputs
• GCL-Gauge Control Language for full computer control
• Automatic timed output on RS-232
• Dual set points with outputs
• Averaging mode for average readings over time
• External trigger for contact or switch testing and data capture
• General purpose I/O for external device control
• Programmable analog and digital filters
• Selectable units of measurement
• Programmable default configuration
• Peak memory for tensile and compressive forces
• Push-button calibration
• Battery or AC operation
• Programmable automatic shutoff
• Reversible aluminum housing for handheld use or test stand mounting (see below)
• Same housing size for all capacities
• Accuracy: ± 0.2% of full scale ±1 digit
• Sampling rate: 65 readings/sec
• Safe overload: 150% of capacity
• Battery life: 8-10 hours per charge
• Weight: 0.9 lbs (0.4 kg)
• Environmental requirements: 40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
• Warranty: 3 years
• CE mark

Reversible Housing - A Mark-10 Exclusive

All Mark-10 force gauges have reversible housings that allow the user to use the gauge with the load cell shaft pointing up or down, without the inconvenience of upside-down buttons and display. The housing for Series BG and Series EG gauges is reversible by separating the two halves and reassembling them with just one connector - an extra bit of engineering that will make your testing setups quicker and more efficient.

Optional Equipment

• A wide range of test stands and gripping fixtures
• Hi/Lo limits indicator
  Set limit conditions for a test - the indicator will display red lights for high and low limits, and a green light to indicate passing.
• Overload protection module
  Protects the force gauge against overloads during motorized tests, adjustable from 20 - 110% of gauge's full capacity. For use with Mark-10 motorized test stands.
• Set point cable
  Stops test stand travel at programmable high and low set points for tension and compression forces. For use with Mark-10 motorized test stands.
• Output cable
  Send test data to a PC, statistical printer, or other data collector for further analysis.

<< The BG is compatible with all Mark-10 force measurement test stands. It is shown here in a tensile testing application, mounted to an ESM motorized test stand with optional items: digital travel display, limit switches, and wedge grips. >> Series BG force gauges are supplied in a cushioned carrying case with AC adapter, rechargeable battery, chisel, cone, v-groove, hook, flat, extension rod, user's manual, and NIST-traceable certificate of calibration.

Ordering Information

For 220V operation add suffix E to model number. Example: BG50E
